Faint WFC Bursts
One of the main goals of the automatic GRB quest on the GRBM data, was
to limit the number of (typically faint) bursts within the field of view
of the WFCs (with a detectable X-ray counterpart), that are missed by the
GRBM on-board trigger logic: in such cases, the duty scientists at the SOC
might not recognize the burst and, therefore, not check at the burst time
in the WFC data, thus missing a prompt localization of a GRB.
These cases mainly happen when the burst is not bright enough to overcome the
on-board thresholds in at least two GRBM units, as required by the
on-board trigger logic; nevertheless, its occurrence can be inferred from
the analysis of the 1 s ratemeters. In other cases, the burst can be
missed by the on-board trigger, because, in spite of its brightness,
it occurred during GRBM dead times.
Figure:
GRB010304. Top panel: 40-700 keV GRBM3 light curve; bottom
panel: 2-28 keV WFC2 light curve (courtesy of J.J.M. in 't Zand).
Example of WFC burst that did not trigger the GRBM on-board logic,
but did the automatic GRB on-line quest (lkGRB[171]).
The zero time corresponds to the S/W trigger time.
 |
Since the automatic GRB quest has come out to be particularly suitable
for discovering such bursts, the possibility of automatically alerting
the BeppoSAX duty scientists, whenever a candidate WFC burst is found
in the GRBM data, might be crucial.
For the remaining cases, i.e. when the WFC burst triggers the GRBM on-board
logic, as it often happens for the brightests (and, so far, long) ones,
all the more reason for automatically detecting them; in any case, they
are normally inspected by the BeppoSAX SOC people.
Since the on-line GRB quest has been monitoring the GRBM data (April 2000),
9 WFC bursts have been automatically detected by means of our SWTCs
(table
); out of them, three were missed by the on-board trigger
logic, because faint: GRB010304 (lkGRB[171], WFC2), GRB010501 (lkGRB[206], WFC1)
and GRB010518 (lkGRB[218], WFC2).
The case of GRB010304 (fig.
) was particularly
unlucky: in spite of its brightness, it has been localized only with
a
accuracy, due to the great spacecraft attitude uncertainty
at the burst time; therefore, since no finer position could have been
extracted, no GCN circular was issued.
Figure:

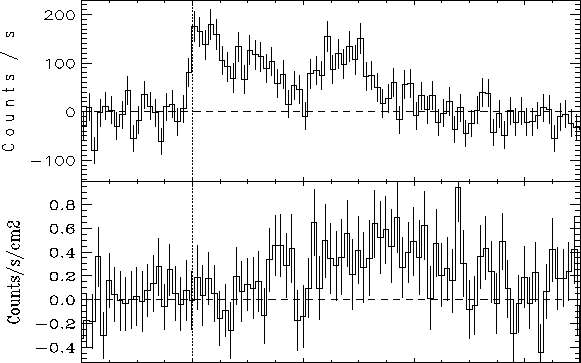

GRB010501, UT 06:37:27
Top panel: 40-700 keV GRBM1 light curve; bottom
panel: 2-28 keV WFC1 light curve (courtesy of J.J.M. in 't Zand).
This faint burst did trigger the on-line quest, and was missed
by the GRBM on-board logic, (lkGRB[206]).
The zero time corresponds to the S/W trigger time.
 |
Another interesting case of WFC burst that triggered the only on-line quest
is given by GRB010501, UT 06:37:27: in fig.
,
showing the synchronized light curves of the GRBM unit 1 and of the WFC1,
a peculiarity stands out immediately:
actually, in the
band, the GRB seems to begin
at least 15-20 s before the X-rays; the GRBM S/W trigger time coincides
with the zero time.
Unfortunately, though the automatic alert e-mail was sent as usual,
it seems that this was not received by the SOC, thus missing the
prompt discovery of the WFC X-ray counterpart, that has been found
months later, during an off-line cross-check between WFC and GRBM
data (J.J.M. in 't Zand, private comm.).
On this subject, the following observation has to be pointed out:
in the case of GRB010501, as well as for GRB000208,
GRB010213 and GRB010304, the WFC team discovered them
independently of the GRBM team during an off-line search,
and only later, after cross-checking, both the GRBM and the
WFC detections allowed their identification as WFC GRBs
(except for GRB010304, which was recognized on line, although
no GCN circular was issued, owing to the uncertainty on the
spacecraft attitude at the burst time).
The last example of WFC burst missed by the GRBM on-board trigger
logic is GRB010518 (fig.
): in this case,
the automatic alert sent to the BeppoSAX SOC allowed the discovery
of the X-ray counterpart in the WFC2 data. Nevertheless, the GCN
circular (GCN 1062) delivering its coordinates, was issued only
three days later, because of the difficulties in estimating the
error circle, due to the faintness of the X-ray signal.
Figure:

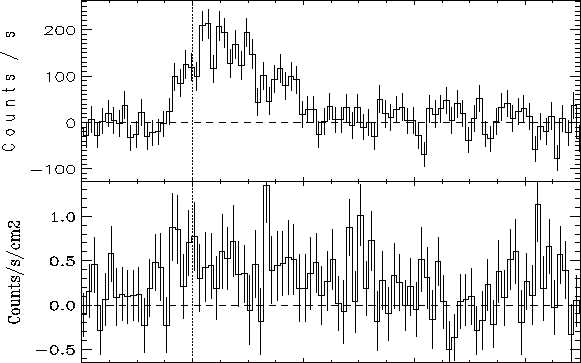

GRB010518, UT 06:43:09
Top panel: 40-700 keV GRBM3 light curve; bottom
panel: 2-28 keV WFC2 light curve (courtesy of J.J.M. in 't Zand).
Another example of faint burst that did trigger the on-line quest,
and was missed by the GRBM on-board logic, (lkGRB[218], GCN 1062).
 |
Unfortunately, other WFC GRBs, occurred after April 2000,
have not been on-line detected, only because the automatic on-line quest
was off at that epoch, due to problems already discussed previously:
GRB001109, GRB010213, GRB010214, and GRB010220.
Nevertheless, out of them, GRB010213 was the only burst, that did not
trigger the on-board logic (it was during the GRBM dead time, due
to a false trigger occurred 160 s earlier), and, for this reason,
was missed by the SOC people (fig.
).
Indeed, this burst could have been on-line detected by the automatic
quest, if only it had been automatically monitored on line.
Figure:

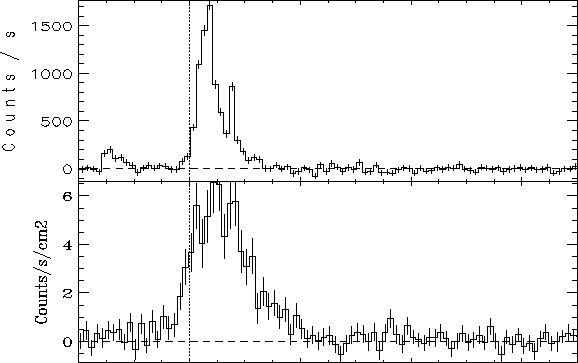

GRB010213, UT 02:57:23
Top panel: 40-700 keV GRBM3 light curve; bottom
panel: 2-28 keV WFC2 light curve (courtesy of J.J.M. in 't Zand).
This bright burst did not trigger the GRBM on-board logic,
because it occurred during the GRBM dead time;
since the on-line quest was off, it was missed at the
epoch and finally discovered during an off-line search.
 |
Table:
WFC GRBs (Apr. 2000 - Dec. 2001)
GRB Date |
UT |
R.A. |
Decl. |
Err. |
On-line |
On-b |
Energy |
lkGRB |
Ref. |
|
|
( ) |
( ) |
(
) |
 |
trg |
Band |
# |
# |
24 Apr 2000 |
18:18:07 |
104.72 |
+49.87 |
3 |
N |
N |
X |
- |
GCN 644 |
28 May 2000 |
08:46:24 |
161.28 |
-33.98 |
2 |
Y |
Y |
X+ |
c |
GCN 677 |
29 May 2000 |
08:43:12 |
2.35 |
-61.53 |
4 |
Y |
Y |
X+ |
c |
GCN 676 |
08 Jun 2000 |
08:51:42 |
6.25 |
-69.03 |
4 |
N |
N |
X |
- |
GCN 696 |
15 Jun 2000 |
06:17:48 |
233.17 |
+73.85 |
2 |
- |
N |
X+ |
- |
GCN 705 |
20 Jun 2000 |
05:33:33 |
113.82 |
+69.20 |
4 |
- |
N |
X+ |
- |
GCN 718 |
11 Oct 2000 |
15:54:50 |
275.77 |
-50.90 |
2 |
Y |
Y |
X+ |
131 |
GCN 847 |
09 Nov 2000 |
09:23:17 |
277.53 |
+55.30 |
4 |
- |
Y |
X+ |
- |
IAU 7519 |
13 Feb 2001 |
02:57:23 |
257.34 |
+39.26 |
1 |
- |
N |
X+ |
- |
(a) |
14 Feb 2001 |
08:48:11 |
265.25 |
+48.54 |
3 |
- |
Y |
X+ |
- |
GCN 933 |
20 Feb 2001 |
22:51:07 |
39.25 |
+61.77 |
4 |
- |
Y |
X+ |
- |
GCN 953 |
22 Feb 2001 |
07:23:30 |
223.05 |
+43.01 |
3 |
Y |
Y |
X+ |
164 |
GCN 960 |
04 Mar 2001 |
05:18:51 |
316.59 |
+53.21 |
60 |
Y |
N |
X+ |
171 |
(b) |
12 Apr 2001 |
21:46:29 |
294.91 |
+13.62 |
6 |
Y |
Y |
X+ |
190 |
GCN 1035 |
01 May 2001 |
06:37:27 |
286.71 |
-70.18 |
6 |
Y |
N |
X+ |
206 |
(c) |
18 May 2001 |
06:43:10 |
161.68 |
-57.79 |
5 |
Y |
N |
X+ |
218 |
GCN 1062 |
30 Oct 2001 |
06:28:02 |
310.91 |
+77.29 |
3 |
N |
N |
X |
- |
GCN 1119 |
21 Nov 2001 |
18:47:11 |
173.61 |
-76.03 |
2 |
Y |
Y |
X+ |
310 |
GCN 1149 |
11 Dec 2001 |
19:09:21 |
168.82 |
-21.93 |
2 |
N |
N |
X+ |
- |
GCN 1189 |
- (a)
- Missed burst (J.J.M. in 't Zand, priv. comm.): on-line quest was not
operating.
- (b)
- BeppoSAX attitude had
uncertainty (no circular issued).
- (c)
- Missed burst (J.J.M. in 't Zand, priv. comm.).
- When ``-'' is reported, the on-line GRB quest was not operating.
