1.) AM radio
2.) Aluminum screen (can be purchased at home supply store
such as Home Depot)
Introduction

The
electromagnetic spectrum consists of waves of many wavelengths ranging from very
long wavelength radio waves to very short wavelength gamma rays. Visible light,
consisting of short wavelength waves, is placed near the middle of this
spectrum.
Visible light can pass through window glass, but a solid wall
will absorb a portion of the light and reflect the remaining portions.
Scientists would say that glass is transparent to visible light, but a wall is
opaque.
Since the atmosphere is transparent to visible light (while
absorbing some of the light), astronomers who use telescopes can see things from
far away using visible light to form images.

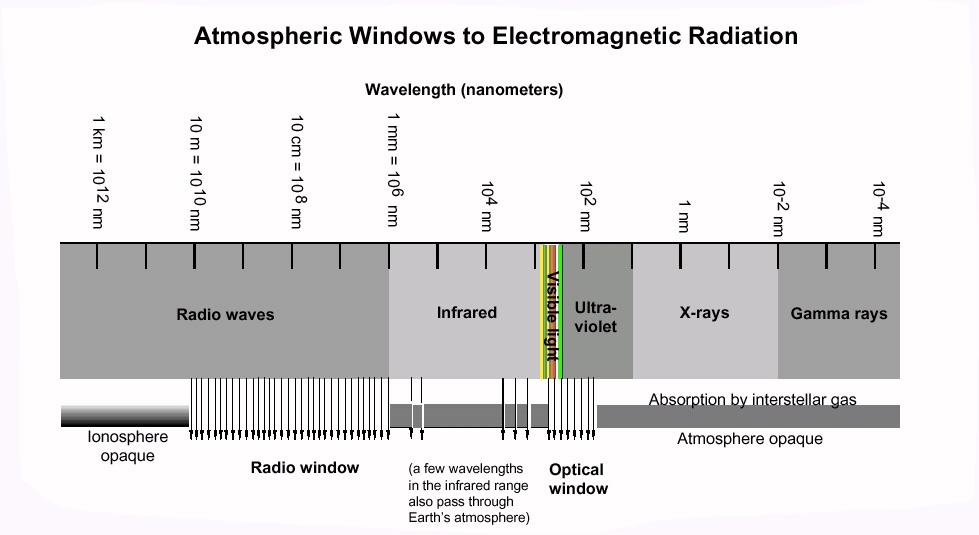

Earth's atmosphere, however,
acts an opaque barrier to much of the electromagnetic spectrum. The atmosphere
absorbs most of the wavelengths shorter than ultraviolet, most of the
wavelengths between infrared and microwaves, and most of the longest radio
waves. For radio astronomers this leaves only short wave radio to penetrate the
atmosphere and bring information about the universe to our Earth-bound
instruments. The main frequency ranges allowed to pass through the atmosphere
are referred to as the radio window. The radio window consists of frequencies
which range from about 5 MHz (5 million hertz) to 30 GHz (30 billion hertz). The
low-frequency end of the window is limited by signals being reflected by the
ionosphere back into space, while the upper limit is caused by absorption of the
radio waves by water vapor and carbon dioxide in the atmosphere. As atmospheric
conditons change the radio window can expand or shrink. On clear days with
perfect conditions signals as high as 300GHz have been detected.

It is the effects of the ionosphere on the lower end of
the radio spectrum that we will investigate in this exercise.
The ionosphere
The ionized part of the Earth's atmosphere is known as the ionosphere.
Ultraviolet light from the sun collides with atoms in this region knocking
electrons loose. This creates ions, or atoms with missing electrons. This is
what gives the Ionosphere its name and it is the free electrons that cause the
reflection and absorption of radio waves.
How does this
affect our observations of Jupiter?
When the sun is overhead
during the day, most of the ionosphere is ionized due to the large amount of
ultraviolet light coming from the sun. As radio waves enter Earth's atmosphere
from space some of the waves are absorbed by the electrons in the ionosphere
while others pass through and are detectable to ground based observers. The
frequency of each of these waves is what determines whether or not it is
absorbed or able to pass through the atmosphere. Low frequency radio waves do
not travel very far through the atmosphere and are absorbed rather quickly.
Higher frequency waves are able to pass through the atmosphere entirely and
reach the ground.
This process also works in reverse for radio waves
produced on the earth. The high frequency waves pass through the ionosphere and
escape into space while the low frequency waves reflect off the ionosphere and
essentially "skip" around the earth.

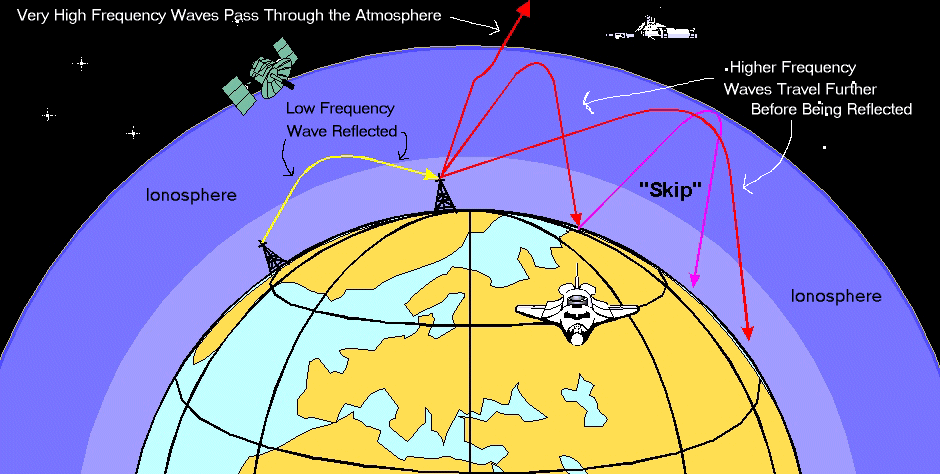

The diagram below will help
illustrate this:

What's all this talk about high frequency and low frequency radio
waves? What types of things fall in each range?
Astronomical radio
sources emit over a wide range of frequencies. Their emission can be measured
ranging from low frequencies to high frequencies. Jupiter for example emits
radio waves from about 10 kHz up to about 300 GHz. This emission is broken into
several groupings. The lowest being the kilometric emission which ranges from
10kHz up to 1000kHz. Other frequency groups include hectometric (1000KHz to
3MHz), decametric (3MHz to 40MHz), and decimetric (100MHz to 300GHz). It is the
decametric emissions that we are concerned about with Radio Jove. The Radio Jove
receiver is tuned to a frequency of 20.1MHz.
Radio waves produced on
Earth are mostly manmade and are often at one specific frequency. In fact, this
is one way astronomers can tell a signal created on Earth apart from an
astronomical signal. If they are able to tune their receivers to a slightly
higher or lower frequency and the signal disappears it is most likely an Earth

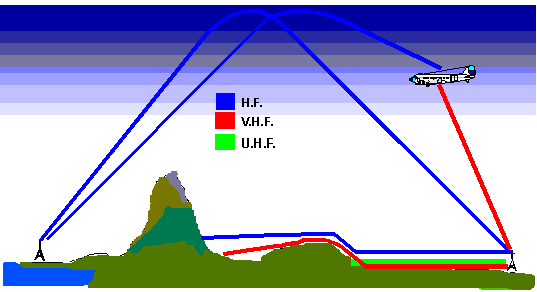

based signal. Radio waves fall into three main categories with a variety of
uses:
H.F. (High Frequency 3 to 30MHz)
Long Range
communications. Shipping, Aircraft, World Broadcast Communications, Radio
Amateurs.
Use involves reflecting the signal off the ionosphere back down to
waiting recieving stations. Prone to atmospheric changes causing fading and
noise.
Range from 500 to thousands of Kilometres.
V.H.F.
(Very High Frequency 30 - 300 MHz)
Medium range communications. Fleet
vehicles, mobile, coastal shipping and air to tower communications.
Range
70-100km (aircraft several hundred km).
U.H.F (Ultra High
Frequency 300-3000 MHz)
This is the domain of such things as Police
handheld radios, cell-phones, T.V., and spacecraft to ground communications. In
the high U.H.F. range the signal can "bounce" off buildings and reflect until it
is detected by a receiver.
Activities
We can use the aluminum screens to mimic
the effects of the ionosphere. To do this follow the following steps:
1.)
Take the AM radio outside and tune in an AM station.
2.) Using the aluminum
screen construct a small cage which you can place over the AM receiver. After
placing the cage over the receiver observe how the station is weaker or
disappears.
3.) Remove the cage and the station returns.
The screen
acts as a solid object to the incoming radio waves. We can imagine the radio as
an Earth based receiving station. The screen, like the ionosphere, reflects the
low energy AM radio waves and they are not detectable.

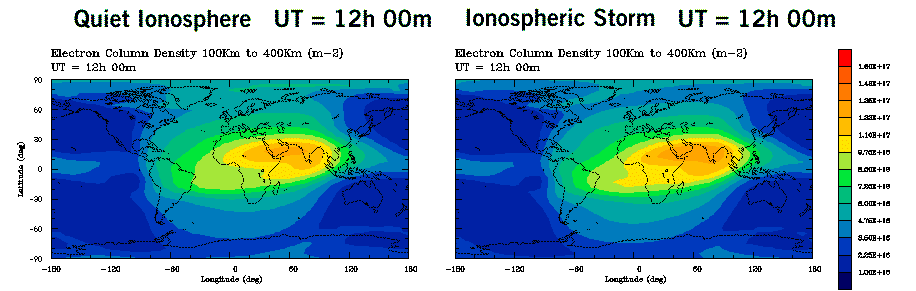

Below is an
animation comparing the ionospheric conditions during a typical day with that of
a day containing an ionospheric storm. An ionospheric storm is caused by a
coronal mass ejection from the sun that strikes the Earth's atmosphere. These
mass ejections contain large amounts of particles that smash into the ionosphere
and knock electrons loose from atoms. As discussed above the loose electrons
reflect radio waves from astronomical sources back into space. The addition of
loose electrons as a result of a mass ejection makes observations and
communications difficult. The dark blue and purple areas are the areas where the
number of loose electrons is low. In these areas there are few electrons to
reflect radio waves and thus lower frequency waves are able to reach the ground.
As can be seen from the animations the night time and early morning hours are
best for observations due to the fact that the sun is not in the sky and its
ultraviolet light is not reaching the atmosphere at this time.

The density of electrons (how many
electrons there are per every cubic centimeter) is represented by the varying
colors. Bands of high density that appear at high latitudes during the storm but
disappear rapidly as it subsides are due to the high velocity particles smashing
into the atoms in the atmosphere and knocking electrons free. These same high
velocity particles produce the auroral lights. We can use these maps and the
varying colors to find the lowest frequency that is detectable from the ground.
The lowest frequency detectable, known as the critical frequency, is related to
the density of electrons by the equation: f = 9x10^-3 x sqrt(N) MHz. In this
equation f is the critical frequency and N is the electron density, sqrt means
to take the square root of the electron density. In the maps above the electron
density ranges from 33300 electrons/cm^3 (dark blue) to 249750 electrons/cm^3
(green) to 552780 electrons/cm^3 (red).
Exercise
Use these values to calculate the critical
frequency for the dark blue, green and red areas on the maps.
dark blue = 1.8 MHz, green = 5 MHz and red = 7.2 MHz
Questions and Problems
The speed of all
electromagnetic waves (the speed of light, or c) is 300,000,000 meters per
second (3 x 10^8 m/s). The distance traveled (d) by an electromagnetic wave in
time (t) is given by the equation: d = c x t.
The frequency and
wavelength of an electromagnetic wave are related by the equation: c =
x f
where f is the frequency of the
wave, c is the speed of light, and
is
the wavelength in meters.
Example 1.) How long would it take a radio wave
to travel to Earth from the moon? The moon is 400,000 kilometers from Earth.
(Note: 400,000 kilometers = 4x10^8 meters.)
d = c x t
4x10^8 = 3x10^8 t
t = 1.33
seconds
Example 2.) What is the wavelength of a radio wave with
a frequency of 500kHz?
c =
x f
3x10^8 =
(500x10^3)
= 600m
1.) If radio
astronomers are studying 20MHz radio signals from the sun which is 1.5x10^11
meters away from the Earth, how long did take for the radio signals to reach
Earth?
t = 500 seconds
2.) 3MHz is the lowest frequency which
will pass through the ionosphere. Calculate the wavelength of these
waves.
= 100
meters
3.) A general rule is that a spacing on the order of 1/10 of a
wavelength will seem solid to a radio wave. What size would the spacings in our
mesh screen have to be in order to block the 20MHz solar radio waves discussed
in problem 1?
= 15 meters, spacing =
1.5 meters
4.) As shown above, the ionosphere can act as a solid
object to radio waves. Using this idea do you think it is possible to build a
radio dish that is not solid? If so, what are the benefits and advantages of a
mesh dish?
lightweight, saves building costs,
not much gathers inside
(rain, snow, leaves, etc.),
in cases of large antennas a mesh can allow
sunlight to
reach the ground below and help prevent erosion
of soil by
allowing growth
of grass and plant life.
5.) If spacings of 1/10
of a wavelength seem solid to electromagnetic waves would imperfections in a
solid radio dish (holes or knicks) of this size matter? Radio studies deal with
waves ranging from about 100m to 1mm. If we built a solid dish for each of these
extremes (100m and 1mm) how small could the imperfections in our antenna
be?
10 meters and .1mm (or .0001m)
