LST: Signals with strip over the chamber turned on

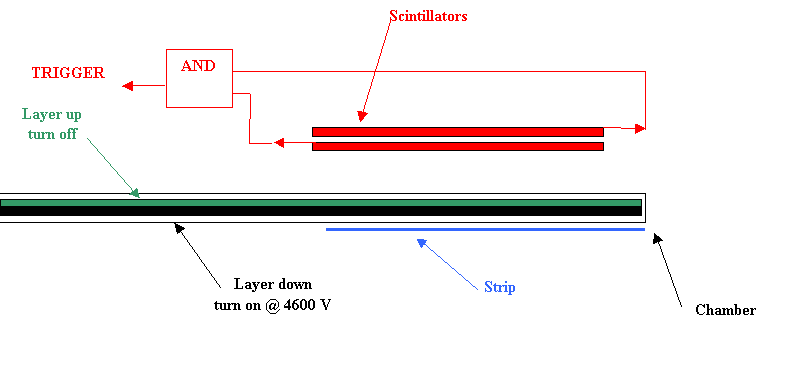

Scheme

· Ch1 = wire

· Ch2 = strip corrisponding to the wire

· Ch3 = strip adjacent at the strip of Ch2

· Ch4 = trigger from the coincidence of the scintillators

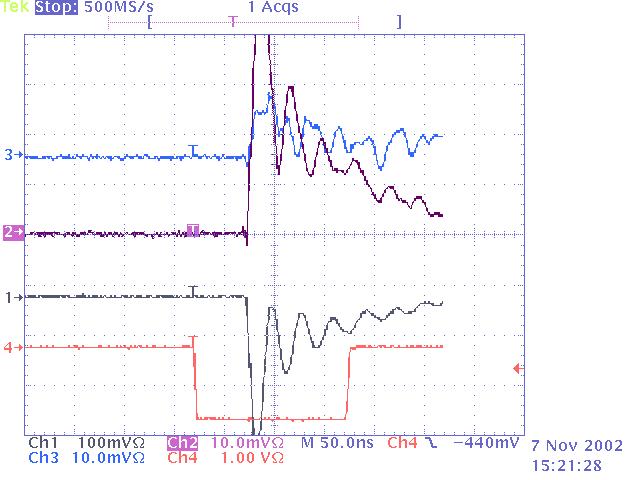

Example 1

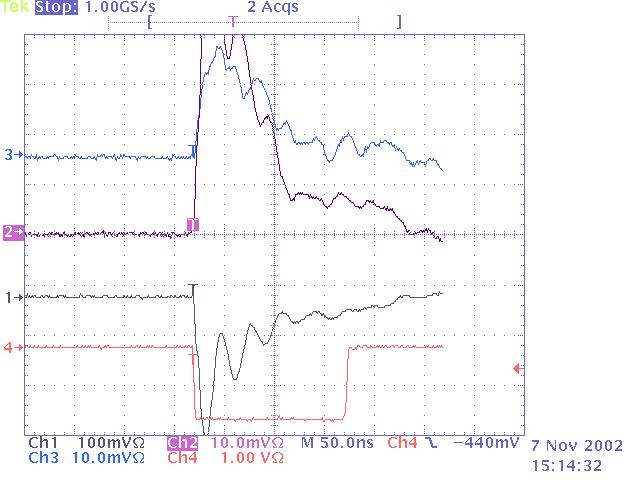

Example 2

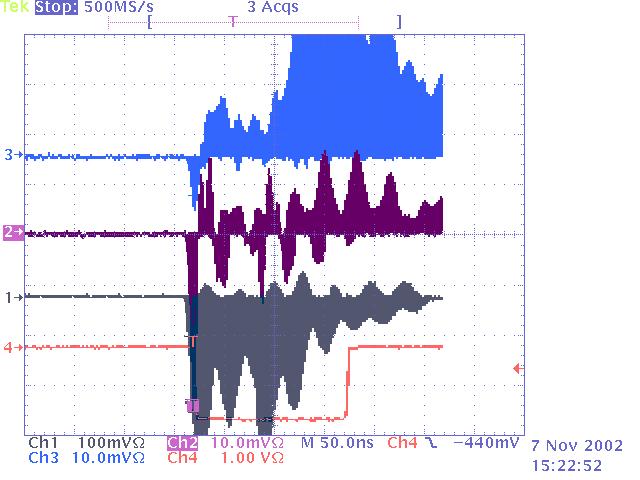

Example 3

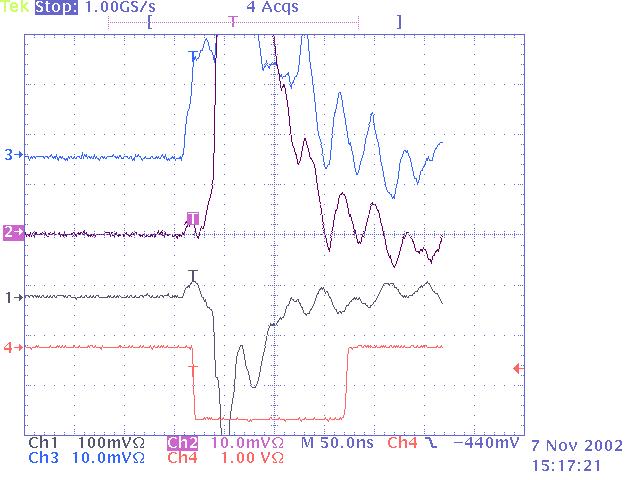

Example 4
