LST: Signals with strip over the other chamber

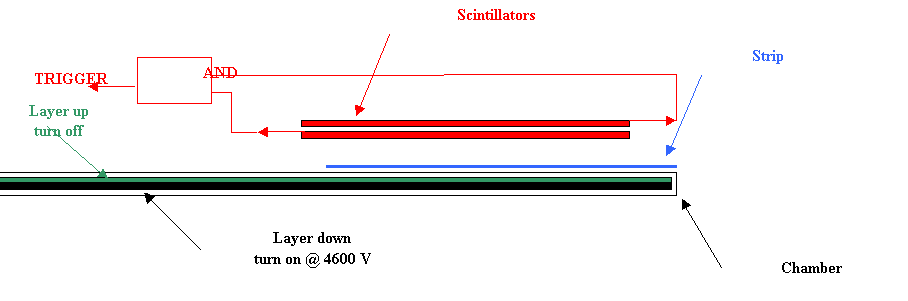

Scheme

· Ch1 = wire

· Ch2 = strip corrisponding to the wire

· Ch3 = strip adjacent at the strip of Ch2

· Ch4 = trigger from the coincidence of the scintillators

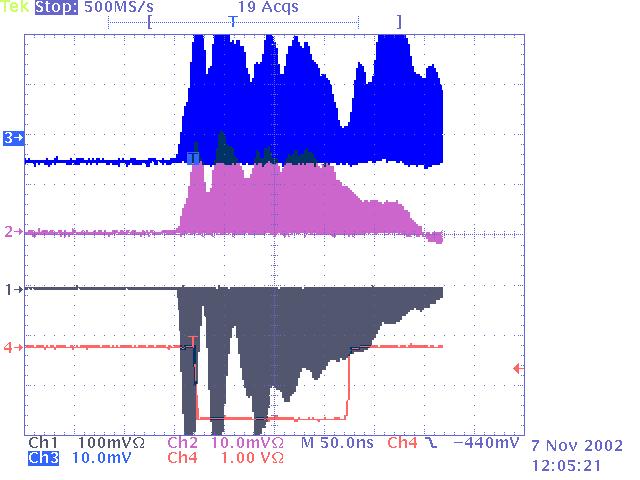

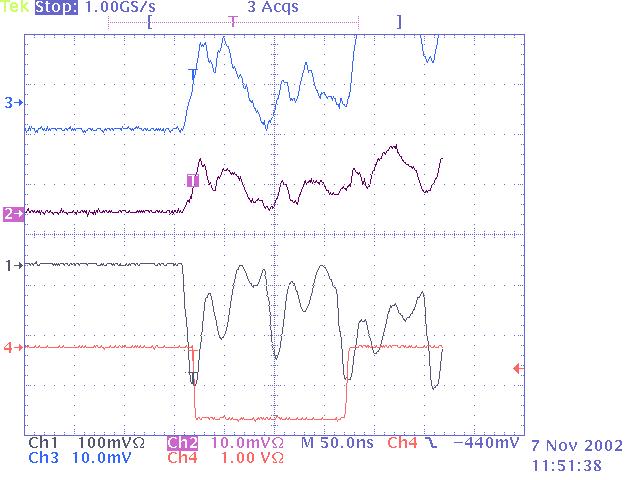

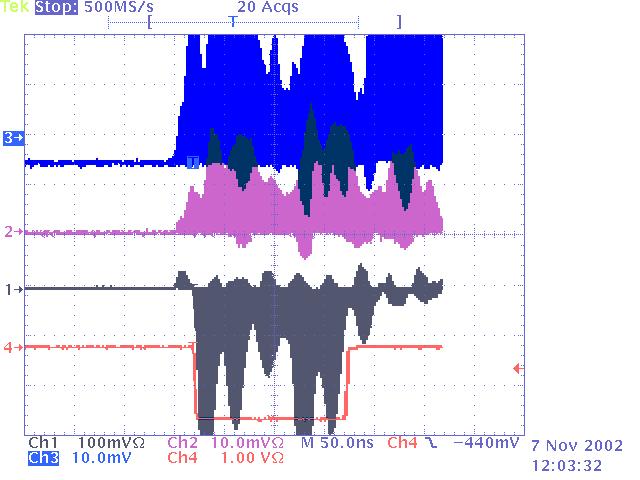

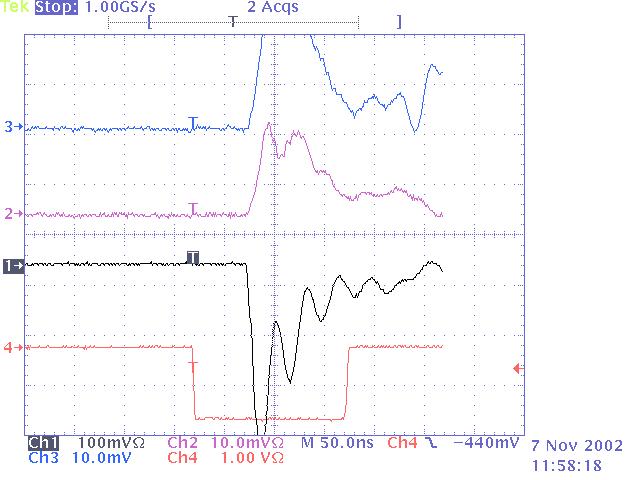

Example 1

Example 2

Example 3

Example 4
